The product name

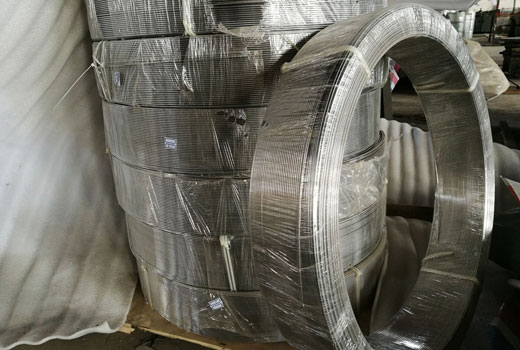

Titanium and titanium alloy wire

The shape of

Straight wire (length), plate wire (indefinite feet)

The material

Domestic: TA1, TA2 and TA3, TA4, TA9, TA10, TC4,
American standard: GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR12

Applicable standards

Domestic: GB/T3623
International: ASTM B863, AWS A5.16, ASTM F67, ASTM F136

specifications

Diameter: from 0.1 mm to 8.0 mm
Length: straight wire (length: 500-3000 - mm), plate wire (indefinite feet)

The production process

Cold, hot drawing

detection

Tensile strength test, macroscopic examination, hardness test, chemical composition test.

The surface of the

Surface treatment: pickling surface shining surface
Surface quality: high precision, finish good, no oxidation, no crack, peeling, thorn, spot and inclusion, etc.Permits slightly, not more than the wire diameter, allowable deviation of the local scratch, scratch, stain and pits, etc.

The delivery status

Annealed state (M), thermal state (R), cold working status (Y)

Application field

Aerospace, aviation, military industry, light industry, chemical industry, 3 d printing, welding, textiles, medical and petrochemical industry, etc..

Product advantage

1. The non-magnetic, non-toxic.
2. Heat resistant performance is good, melting point 1668 + 4 ℃, boiling point 3535 ℃), low temperature resistance to - 196-253 ℃ low temperature keep the good ductility and toughness, avoid metal cold brittleness.
(3) corrosion resistance: titanium in sea water, wet chlorine, chlorite and hypochlorite solution, nitric acid, chromic acid, metal chloride, sulfur and organic acids in not corrode.
